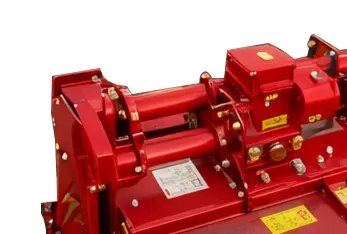

Single Speed Gearbox

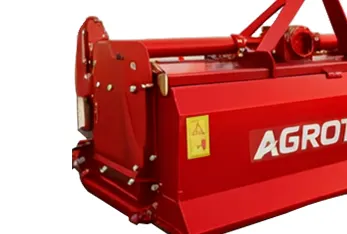

Side Transmission Housing

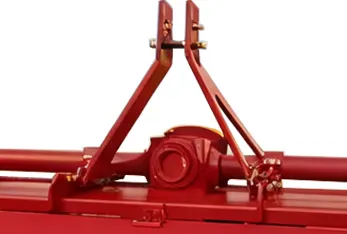

Tree Point Hitch System

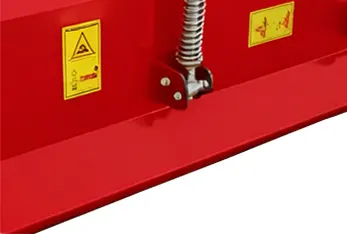

Safety Guarding Trad Deals
| MODEL | NEO 1320 | NEO 1500 |
|---|---|---|
| Gear Box | Single speed 11x16 | Single speed 11x16 |
| Side gear combination | 18x30x30 | 18x30x30 |
| Max working depth (mm) | 182 | 182 |
| Blade | L/C type | L/C type |
| Internal flange | 7 | 8 |
| Working width (mm) | 1320 | 1500 |
| No. of Blade | 42 | 48 |
| Weight (kg) | 210 | 225 |
| Input RPM | 540 | 540 |
| Rotor RPM @540 | 222 | 222 |
| Rotor Tube Dia (mm) | 63 | 63 |
| Rotor Swing Dia (mm) | 413 | 413 |
| Driveline Safety | Shear Bolt | Shear Bolt |
| Length (m) | 1.5 | 1.5 |
| Height (mm) | 920 | 920 |
| Width (mm) | 880 | 880 |
